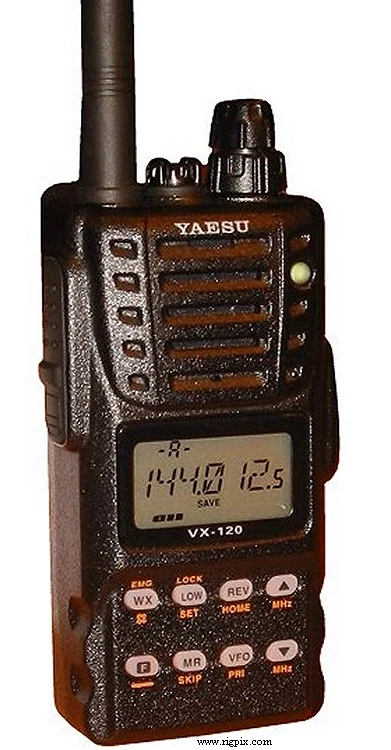

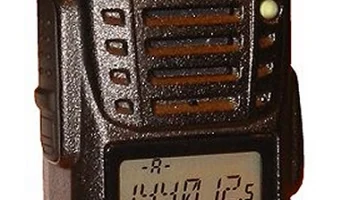

VX-120
Источник:
GENERAL
| Type | Amateur VHF transceiver |
|---|---|
| Frequency range | Europe TX: 144-146 MHz RX: 137-174 MHz USA 144-148 MHz RX: 137-174 MHz |
| Tuning steps | 5 / 10 / 12.5 / 15 / 20 / 25 / 50 / 100 KHz |
| Frequency stability | ±5 ppm @ -10° to +60° C (14° to 140° F) |
| Mode | FM |
| Channels / memory management | 200 regular 1 home 10 PMS/scan edge pairs 10 NOAA weather channels |
| Repeater shift / offset | ±600 KHz |
| Power supply | 7.2 VDC (Battery pack)or 6-16 VDC external |
| Current drain / power consumption | RX: 20-125 mATX: Max 1.5 A |
| Antenna impedance / connector | 50 ohm / SMA |
| Dimensions (W*H*D) | 60*120*32 mm (2.36*4.72*1.26") |
| Weight | 390 g (13.8 oz), with FNB-83, antenna and belt clip |
| Other features | Dual watch. ARTS. Submersible. |
RECEIVER SECTION
| Receiver system | Double conversion superheterodyne 1st IF: 21.7 MHz 2nd IF: 450 KHz |
|---|---|
| Sensitivity | 140-150 MHz: 0.16 uV (12 dB SINAD) |
| Selectivity | 12 KHz (-6 dB)35 KHz (-60 dB) |
| Image rejection | — |
| AF output power / speaker | 700 mW at 10% distortion / 16 ohm |
| External speaker connector | — |
TRANSMITTER SECTION
| RF output power | HighMidLow 2 m:5 W2 W500 mW |
|---|---|
| 2 m | 5 W |
| Modulation system | Variable reactance |
| Max FM deviation (Factory set) | ±5 KHz |
| Spurious emissions | Better than -60 dB @ Hi and Middle power |
| Microphone impedance / connector | 2 Kohm / ?-pin |
| Microphone input level | — |
MISCELLANEOUS
| Manufactured | Japan, 2005-200x (Discontinued) |
|---|---|
| Additional info | — |
| CMP-460A CN-3 CT-91 E-DC-5B E-DC-6 FBA-25A FNB-83 FTD-7 MH-57A4B NC-88B NC-88C NC-88U VAC-370 VC-24 VC-27 YHA-68 | Waterproof speaker-microphone BNC-to-SMA adapter Microphone adapter DC cable with cigarette-lighter adapter DC cable, plug and wire only Dry battery case (6*LR6/AA batteries) NiMH battery pack. 7.2 V, 1400 mAh DTMF paging unit Speaker-microphone 10-hour battery charger. 100-120 VAC 10-hour battery charger. 230-240 VAC 10-hour battery charger. 230 VAC Desktop rapid charger VOX headset Earpiece-microphone 2 m antenna |
